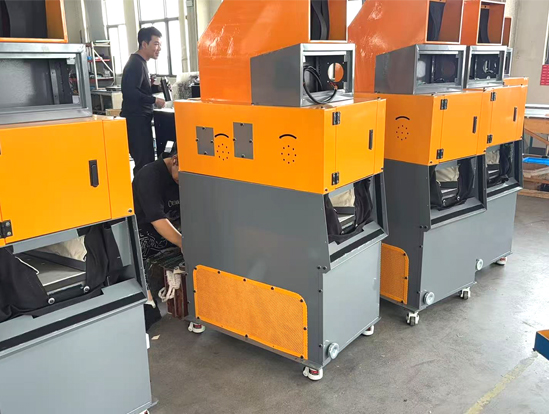

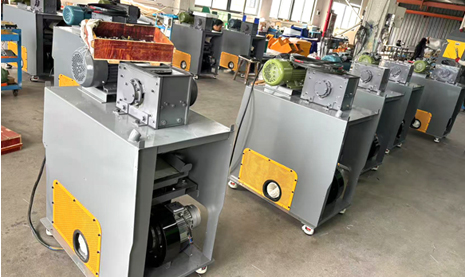

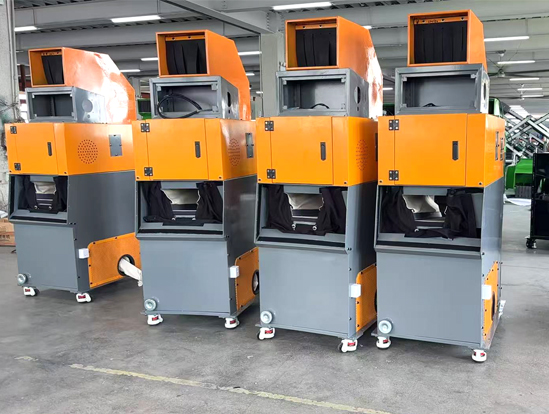

C03 Copper Granulator

C03 copper wire granulator is our smallest model, which is specialized in processing all types of waste wires and cables, separating copper and plastic. It has a small footprint and is easy to operate, making it an ideal choice for small recycling stations/workshops.

Capacity: 20-40kg/h
Power: 4.28kw
Processing wire DIA:≤25mm

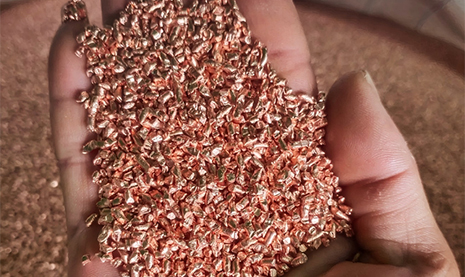

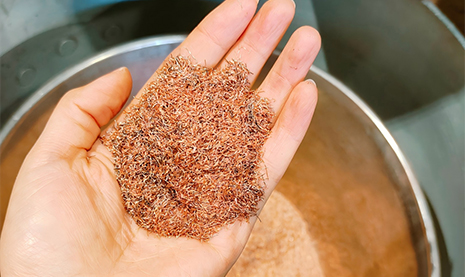

1. High purity copper(99.9%)
2.Low energy consumption

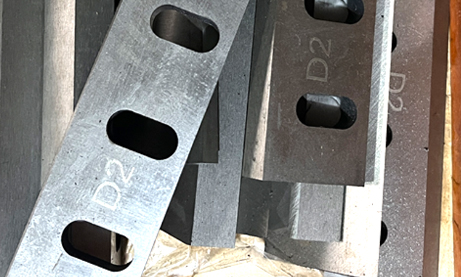

3.Durable blades(D2)
4.No dust pollution (equipped with a dust removal system)
5.Easy to operate(Safe and automatic)

The small copper wire granulator is designed to recycle scrap copper wires, by separating the copper from the plastic insulation. The entire process is dry-type (no water used) and consists of three main stages:

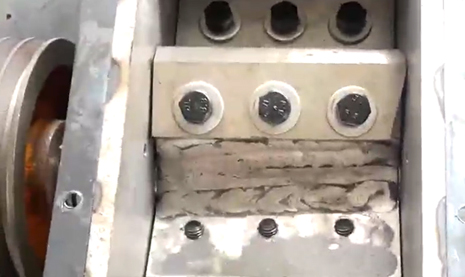

Step 1: Crushing

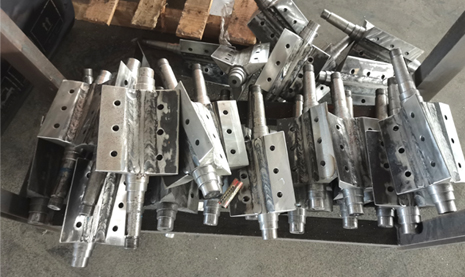

The rotating blades will cut the wires into 3-6mm piece , separating the copper from the plastic insulation.

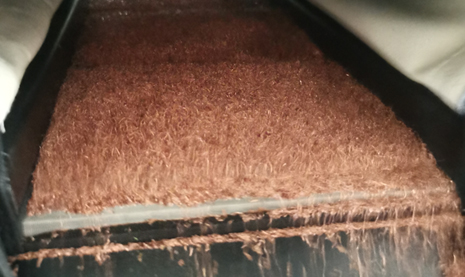

Step 2: Vibration & Air Separation

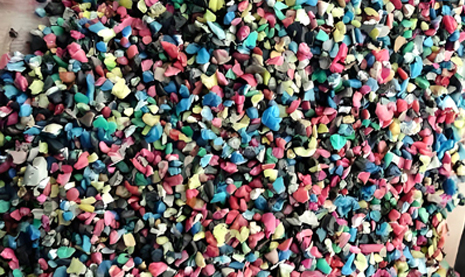

The crushed material falls onto a vibrating table. A fan blows air through the material, blowing the light plastic out from one end, while the heavy copper moves to another outlet.

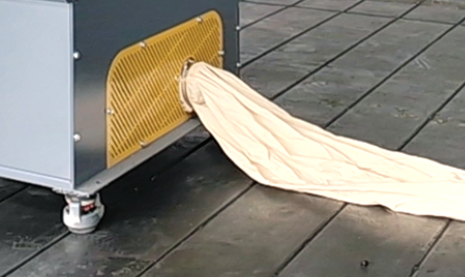

Step 3: Dust collection
A dust filter captures fine particles, regular cleaning is sufficient, keeping the workplace clean.
